Datasheet PQM SERIES

The PQM series is our flagship touring grade 4 channel amplifier. Exemplifying over 15 years of research and development by SAE Audio, they feature our most advanced technologies in both Regulated Switch Mode Power Supplies and our patented Class I™ power modules. The PQM Series amplifiers deliver a massive power density (2500W per channel @ 2Ω with the largest PQM13) with unprecedented sonic quality from a very lightweight 2 rack-space amplifier. With this rock solid performance and extreme efficiency, the PQM Series amps represent the industry standard for world-class professional touring sound reinforcement applications.

Model PQM 13

Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)

8Ω Stereo*      1300W x4
4Ω Stereo**     2100W x4
2Ω Stereo**     2500W x4
8Ω Bridge**     4200W x2
4Ω Bridge**     5000W x2

Other specification:

• Frequency response: 20Hz – 20kHz, +0/-1.5dB
• THD+N: ≤ 0.05%
• Damping factor: ≥ 800
• S/N Rate: ≥ 80dB
• Inputs CMRR: ≥ 70
• Input sensitivity: 0.775v / 1v / 1.4v / 38dB / 32dB / 26dB
• Voltage gain: 42.3dB
• Input impedance: Balance 20KΩ /Unbalanced 10KΩ
• Output circuitry: Class I
• Protection: Soft start, DC, Short circuit, Over load, Clip/limit, Over heat & Progressive volume
• Connection input: XLR-F
• Connection output Link: XLR-M
• Connection output: Speakon

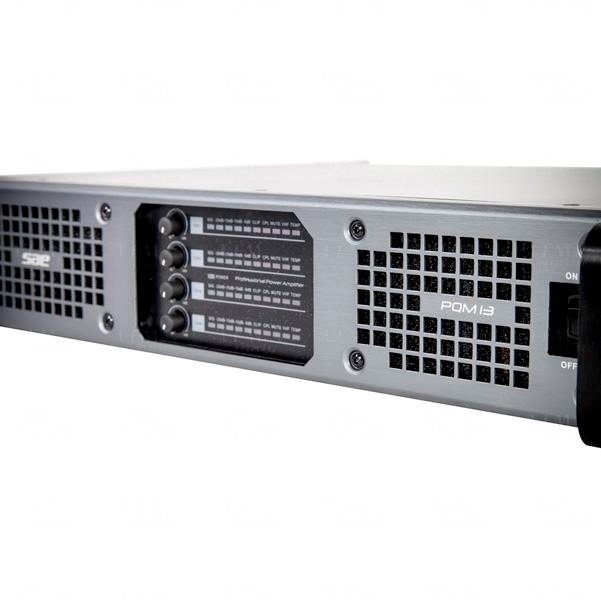

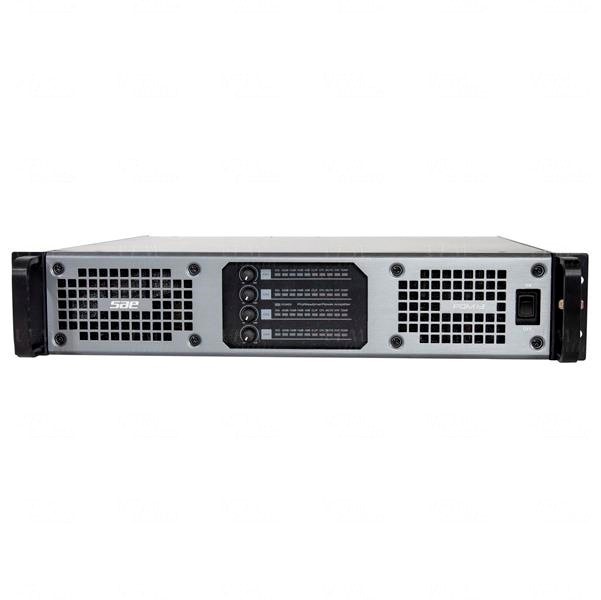

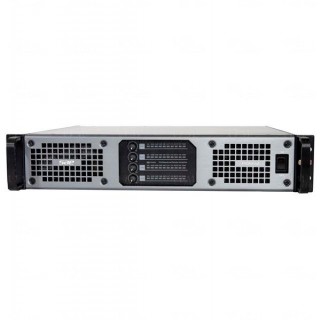

• Front panel: Standby, power, signal VU, Clip, Protection, Parallel, Bridge

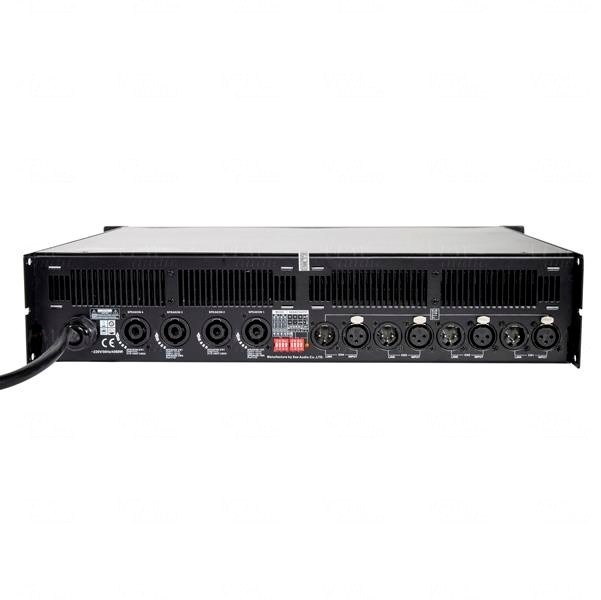

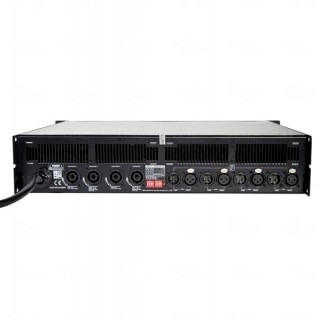

• Rear panel: Stereo/parallel/bridge switch, input sensitivity switch
• Dimensions (WxDxH): 483x459x89mm
• Weight (Approx.): 15.7 kg
